When a certain intended Chemical compound (regarded as a Product) is being produced via means of Chemical Reaction and Conditioning Process, such systems are referred to as Process Plants.
There are many Kinds of Equipments that are used frequently to carry out such Chemical Processes.
Some of these equipments are, Reactors, Heaters, Compressors etc. You can gain some idea by looking at the below schematic Block diagram.
Process plant instrumentation refers to the array of devices, sensors, and systems (Eg: Distributed Control System, Emergency Shutdown system) used to measure, monitor, and control the physical parameters of industrial processes.
These parameters include temperature, pressure, flow, level, and chemical composition, among others. Instrumentation ensures that processes operate within desired limits, maintaining safety, efficiency, and product quality while minimizing downtime and environmental impact.

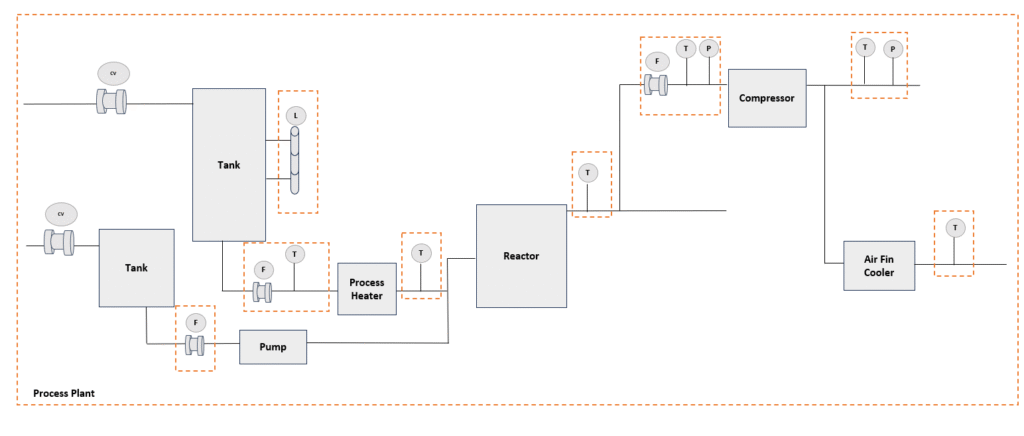

Usually, the Piping and Instrumentation Diagrams are drawn to show the details of interconnection of piping and the installed instruments. The Piping and Instrumentation diagram also contains the details where a particular Equipment will be controlled i.e. the System in which the sensors are to be connected.
To be able to understand the monitoring and control of the Entire Process plant, a no. of Drawings and Documents/with details are required to be referred. A Faint Idea of the Remote monitoring of Process plants can be imagined however by looking at the below drawn Block Diagram.
In the above diagram, you can see that the Process plant area and Control room are shown in two separate boxes. The sensors/Transmitters in the Process plant area transmit signals to the Rack room/Control Room wherein the Operators can monitor the sensors and determine the course of action to be taken.
At its core, instrumentation is about gathering real-time data and using it to make informed decisions. Whether it’s adjusting the flow of raw materials in a chemical reactor or ensuring the precise temperature in a distillation column, instrumentation provides the eyes and ears of a process plant, enabling operators and automated systems to respond to changing conditions.
Process Equipment with Process Plant Instrumentation
Process plant instrumentation is integral to the operation, monitoring, and control of various equipment in industrial facilities such as oil refineries, chemical plants, power plants, pharmaceutical manufacturing, and food processing units. Below is a comprehensive overview of the key process equipment commonly equipped with instrumentation, along with the types of instruments used and their roles in ensuring safety, efficiency, and reliability.
1. Reactors
Reactors are vessels where chemical or biological reactions occur, such as in chemical synthesis, polymerization, or fermentation.
Instrumentation Used:
- Temperature Sensors (Thermocouples, RTDs): Monitor reaction temperature to maintain optimal conditions and prevent runaway reactions. To measure each bed temperature and control Bed differential temperatures in Catalytic reactors.
- Pressure Transducers: Measure internal pressure to ensure safe operation, especially in high-pressure reactors.
- Level Sensors (Ultrasonic, Radar, Capacitive): Track the level of reactants or products to prevent overfilling or dry running.
- pH and Conductivity Probes: Control chemical composition in reactors requiring precise pH or ionic conditions.
- Flow Meters: Regulate the flow of reactants, catalysts, or cooling fluids.
Role of Instrumentation:
Instrumentation ensures precise control of reaction parameters, enhances product quality, and prevents hazardous conditions like overpressure or overheating.
2. Pumps
Pumps are used to transport liquids or slurries through pipelines in process plants.
Pumps have impellers that drive liquid to a certain destination through Process pipes by creating a Pressure Head. The Pumps can come in various specifications and sizes accordingly they become complex in terms of operation and maintenance.
Pumps can either be driven by a Motor or a Turbine. We will talk about motor driven pumps in this article and the instrumentation related to it.
In the diagram above, you can see that a motor driven pump is used to draw liquid from the reservior reservior. In order for the pump to operate safely, the liquid should be present in adequate amount(Flow). Sometimes the liquid level drops below the nozzle that is used to connect the pump to the reservior, this can result in less/no flow to the inlet of the pump, which can in turn damage the pump. To reolve this, the level of the Reservior is measured and at an alarming level, the Pump is stoped by the Controller.
Instrumentation Used:
- Pressure Sensors: Monitor suction and discharge pressure to detect blockages or cavitation.
- Flow Meters (Electromagnetic, Ultrasonic): Measure flow rate to ensure proper fluid delivery.
- Vibration Sensors: Detect mechanical issues like misalignment or bearing wear.
- Temperature Sensors: Monitor motor or bearing temperature to prevent overheating.
- Level Sensors: Ensure adequate liquid levels in suction tanks to avoid dry running.
- Variable Frequency Drives (VFDs): Control pump speed based on process demand.
Role of Instrumentation:
Instrumentation optimizes pump performance, prevents mechanical failures, and reduces energy consumption by adjusting pump operation to process needs.
3. Compressors
Compressors increase the pressure of gases for processes like gas transport, refrigeration, or chemical reactions. Compressors mostly are of two types that are used in Process Plants, rotary or Reciprocating. The Bigger ones with higher capacity of Gas Flow are usually Centrifugal Compressors. Some of the world’s most reliable Compressors are manufactured by companies like Baker Huges and Siemens.
Compressors can be driven either by a Motor or a Turbine(Steam of Gas).
In this article we will give an overview of how a Centrifugal compressor(Steam turbine driven) Instrumentation looks like, a very basic one just to have an idea.
In the above Diagram, you can see that a Steam turbine Driven Centrifugal compressor is shown. A special Controller, Anti-Surge Control is used to implement an Anti-surge Control function and further to operate the Steam Governer Valve.
The Steam flow to the turbine is controlled by the Governer Valve which inturn recieves set-point from the Anti-surge PLC.
Instrumentation Used:
- Pressure Transducers: Monitor inlet and outlet pressure to maintain safe and efficient operation.
- Temperature Sensors: Measure gas and component temperatures to prevent overheating.
- Flow Meters: Track gas flow rates to ensure process requirements are met.
- Vibration Sensors: Detect mechanical issues such as rotor imbalance or bearing failure.
- Gas Analyzers: Monitor gas composition to prevent contamination or unsafe conditions.
- Speed Sensors: Control compressor speed in variable-speed units.
Role of Instrumentation:
Instrumentation ensures reliable gas compression, prevents equipment damage, and maintains process efficiency by monitoring critical parameters.
4. Process Heaters
Process heaters, such as fired heaters or electric heaters, provide heat for processes like distillation, cracking, or drying.
Instrumentation Used:
- Temperature Sensors (Thermocouples): Monitor heater outlet temperature and tube skin temperature to prevent overheating.
- Pressure Sensors: Measure fuel gas or process fluid pressure to ensure proper operation.
- Flow Meters: Regulate fuel, air, or process fluid flow to maintain combustion efficiency.
- Oxygen Analyzers: Monitor flue gas oxygen levels to optimize combustion and reduce emissions.
- Flame Detectors: Ensure the burner flame is stable to prevent unsafe conditions.
- Level Sensors: Monitor liquid levels in heater feed systems.
Role of Instrumentation:
Instrumentation ensures efficient heat transfer, prevents equipment damage, and minimizes emissions by optimizing combustion and heat delivery.
5. Heat Exchangers
Heat exchangers transfer heat between fluids, used in applications like cooling, heating, or condensing.
Instrumentation Used:
- Temperature Sensors: Monitor inlet and outlet temperatures of both hot and cold fluids to assess performance.
- Pressure Sensors: Detect pressure drops indicating fouling or blockages.
- Flow Meters: Measure fluid flow rates to ensure efficient heat transfer.
- Differential Pressure Sensors: Monitor pressure differences across the exchanger to detect fouling.
- Level Sensors: Track liquid levels in shell-and-tube or reboiler systems.
Role of Instrumentation:
Instrumentation optimizes heat exchange efficiency, detects maintenance needs, and prevents issues like fouling or tube rupture.
6. Storage Tanks
Storage tanks hold raw materials, intermediates, or finished products.
Instrumentation Used:
- Level Sensors (Radar, Ultrasonic, Hydrostatic): Monitor tank levels to prevent overfilling or emptying.
- Pressure Sensors: Measure vapor pressure in pressurized tanks.
- Temperature Sensors: Monitor stored material temperature to prevent degradation.
- Flow Meters: Track inlet and outlet flows during loading or unloading.
- Gas Detectors: Detect leaks or hazardous vapor accumulation.
Role of Instrumentation:
Instrumentation ensures safe storage, prevents spills, and provides inventory management data.
7. Boilers
Boilers generate steam for heating, power generation, or process use.
Instrumentation Used:
- Pressure Sensors: Monitor steam and feedwater pressure to ensure safe operation.
- Temperature Sensors: Measure steam and flue gas temperatures to optimize efficiency.
- Level Sensors: Control water levels in the drum to prevent dry firing or carryover.
- Flow Meters: Regulate fuel, air, and feedwater flow for efficient combustion.
- Oxygen Analyzers: Optimize combustion by monitoring flue gas oxygen levels.
- Flame Detectors: Ensure safe burner operation.
Role of Instrumentation:
Instrumentation enhances boiler efficiency, ensures safety, and reduces emissions by controlling combustion and steam generation.
8. Turbines
Turbines, such as steam or gas turbines, convert energy into mechanical work for power generation or driving equipment.
Instrumentation Used:
- Speed Sensors: Monitor rotor speed to maintain optimal performance.
- Temperature Sensors: Measure bearing, exhaust, or inlet gas temperatures to prevent overheating.
- Pressure Sensors: Monitor steam or gas pressure at inlet and outlet.
- Vibration Sensors: Detect mechanical issues like misalignment or blade wear.
- Flow Meters: Measure fuel or steam flow to optimize energy output.
Role of Instrumentation:
Instrumentation ensures reliable turbine operation, maximizes energy efficiency, and prevents mechanical failures.
9. Filters and Separators
Filters and separators remove impurities or separate phases, such as in gas-liquid or solid-liquid separation.
Instrumentation Used:
- Pressure Sensors: Monitor pressure drops to detect clogging or fouling.
- Flow Meters: Measure inlet and outlet flows to ensure separation efficiency.
- Level Sensors: Control liquid levels in separators.
- Temperature Sensors: Monitor process fluid temperature to maintain separation conditions.
- Analyzers: Measure purity or composition of separated streams.
Role of Instrumentation:
Instrumentation ensures effective separation, detects maintenance needs, and maintains product quality.
10. Evaporators and Dryers
Evaporators and dryers remove moisture from liquids or solids, used in food processing, pharmaceuticals, and chemical plants.
Instrumentation Used:
- Temperature Sensors: Monitor product and heating medium temperatures to prevent overheating.
- Pressure Sensors: Control vacuum or operating pressure in evaporators.
- Level Sensors: Track liquid levels in evaporator feed systems.
- Flow Meters: Regulate feed or heating medium flow.
- Humidity Sensors: Monitor moisture content in dryers to ensure proper drying.
Role of Instrumentation:
Instrumentation optimizes drying or evaporation efficiency, ensures product quality, and prevents equipment damage.
11. Conveyors
Conveyors transport solids or bulk materials in industries like mining, cement, or food processing.
Instrumentation Used:
- Speed Sensors: Monitor belt or chain speed to ensure proper material flow.
- Load Cells: Measure material weight to prevent overloading.
- Temperature Sensors: Monitor motor or bearing temperatures to prevent overheating.
- Vibration Sensors: Detect mechanical issues like belt misalignment.
- Level Sensors: Monitor material levels at transfer points.
Role of Instrumentation:
Instrumentation ensures reliable material transport, prevents equipment damage, and optimizes throughput.
14. Crystallizers
Crystallizers are used to form solid crystals from a solution, common in chemical and pharmaceutical industries.
Instrumentation Used:
- Temperature Sensors: Control cooling or heating to optimize crystal formation.
- Level Sensors: Monitor solution or slurry levels.
- pH Probes: Maintain solution chemistry for proper crystallization.
- Flow Meters: Regulate feed or coolant flow.
- Turbidity Sensors: Monitor crystal formation progress.
Role of Instrumentation:
Instrumentation ensures consistent crystal size and purity, optimizes process efficiency, and prevents equipment fouling.
12. Fin fan Coolers
Air Coolers dissipate heat from process fluids, used in power plants and refineries.
Instrumentation Used:
- Temperature Sensors: Monitor inlet and outlet water temperatures to assess cooling efficiency.
- Flow Meters: Measure water or air flow rates.
- Level Sensors: Control water levels in the basin to prevent pump dry running.
- pH and Conductivity Probes: Monitor water chemistry to prevent scaling or corrosion.
- Fan Speed Sensors: Optimize fan operation for energy efficiency.
Key Components of Process Plant Instrumentation
Instrumentation systems in process plants are composed of several critical components, each with a specific role in the measurement and control loop. Let’s explore the primary elements:
1. Sensors and Transducers
Sensors and transducers are the frontline devices that measure physical parameters. A sensor detects a physical phenomenon (e.g., temperature or pressure), while a transducer converts this measurement into an electrical signal for further processing. Common examples include:
- Thermocouples and RTDs for temperature measurement.
- Pressure transducers for monitoring gas or liquid pressure.
- Flow meters (e.g., electromagnetic, ultrasonic, or Coriolis) for measuring the flow rate of fluids.
- Level sensors (e.g., ultrasonic, radar, or capacitive) for determining the level of liquids or solids in tanks.
These devices are designed to withstand harsh industrial environments, including extreme temperatures, corrosive chemicals, and high pressures.
2. Transmitters
Transmitters amplify and condition the signals from sensors, converting them into standardized formats (e.g., 4-20 mA current loops or digital protocols like HART or Foundation Fieldbus) for communication with control systems. Smart transmitters, equipped with microprocessors, can perform diagnostics, self-calibration, and data processing, enhancing reliability and accuracy.
3. Controllers
Controllers are the brains of the instrumentation system, analyzing sensor data and making decisions to maintain process parameters within set limits. The most common type is the Programmable Logic Controller (PLC) or Distributed Control System (DCS), which processes input signals and sends commands to actuators. For example, a controller might adjust a valve to regulate flow based on a flow meter’s readings.
4. Actuators
Actuators are the muscle of the system, executing control commands. They include:
- Control valves to regulate fluid flow.
- Motors to drive pumps or compressors.
- Heaters or coolers to adjust temperature.
Actuators translate electrical signals into physical actions, ensuring the process aligns with the desired setpoint.
5. Human-Machine Interface (HMI)
The HMI is the window into the process, providing operators with real-time data through graphical displays, alarms, and trend charts. HMIs allow operators to monitor system performance, diagnose issues, and manually intervene when necessary. Modern HMIs are often integrated with SCADA (Supervisory Control and Data Acquisition) systems for plant-wide oversight.
6. Communication Networks
Instrumentation systems rely on robust communication networks to transmit data between sensors, controllers, and HMIs. Protocols like Modbus, Profibus, and Ethernet/IP ensure seamless integration and real-time data exchange across the plant.
How Process Plant Instrumentation Works
The instrumentation process follows a closed-loop control system, often referred to as a control loop. Here’s a simplified overview of how it works:
- Measurement: Sensors measure process variables (e.g., temperature, pressure) and send the data to a transmitter.
- Signal Transmission: The transmitter converts the sensor data into a standardized signal and sends it to the controller.
- Control Decision: The controller compares the measured value to a desired setpoint and calculates the necessary corrective action.
- Actuation: The controller sends a signal to an actuator (e.g., a valve or motor) to adjust the process.
- Feedback: The sensor continuously monitors the process, providing feedback to ensure the system remains stable and within desired parameters.
This feedback loop ensures that processes remain consistent, even in the face of disturbances like changes in raw material properties or external conditions.
Applications of Process Plant Instrumentation
Process plant instrumentation is ubiquitous across industries. Here are some key applications:
1. Oil and Gas
In oil refineries and gas processing plants, instrumentation monitors and controls processes like distillation, cracking, and gas compression. For example, pressure and temperature sensors ensure safe operation of high-pressure pipelines, while flow meters optimize the transport of crude oil.
2. Chemical Manufacturing
Chemical plants rely on precise instrumentation to control reactions, maintain product quality, and ensure safety. Level sensors prevent tank overflows, while pH meters ensure the correct chemical composition in reactors.
3. Power Generation
In power plants, instrumentation monitors boiler temperatures, turbine speeds, and cooling water flow. Advanced control systems optimize fuel combustion to maximize efficiency and reduce emissions.
4. Pharmaceuticals
In pharmaceutical manufacturing, instrumentation ensures compliance with stringent regulatory standards. Temperature and pressure controls maintain sterile conditions, while analytical instruments verify the purity of active ingredients.
5. Food and Beverage
Instrumentation ensures product consistency and safety in food processing. For instance, flow meters regulate ingredient mixing, while temperature sensors ensure proper pasteurization.
6. Water and Wastewater Treatment
Instrumentation is critical for monitoring water quality, controlling chemical dosing, and managing filtration processes. Sensors measure parameters like pH, turbidity, and dissolved oxygen to ensure safe drinking water.
Challenges in Process Plant Instrumentation
Despite its benefits, instrumentation comes with challenges:
- Harsh Environments: Sensors and devices must operate reliably in corrosive, high-temperature, or explosive environments, requiring robust designs and materials.
- Calibration and Maintenance: Instruments require regular calibration to maintain accuracy, which can be time-consuming and costly.
- Integration Complexity: Integrating diverse systems and protocols across a plant can be challenging, especially in older facilities with legacy equipment.
- Cybersecurity: As instrumentation systems become more connected, they are vulnerable to cyber threats, necessitating robust security measures.
Emerging Trends in Process Plant Instrumentation
The field of process plant instrumentation is evolving rapidly, driven by technological advancements:
1. Industrial Internet of Things (IIoT)
IIoT enables real-time data collection and analysis from thousands of sensors, providing deeper insights into process performance. Cloud-based platforms allow remote monitoring and predictive analytics, reducing downtime.
2. Wireless Instrumentation
Wireless sensors and transmitters reduce installation costs and improve flexibility, especially in remote or hazardous areas. Protocols like WirelessHART are gaining traction.
3. Artificial Intelligence and Machine Learning
AI and ML algorithms analyze instrumentation data to optimize processes, predict failures, and automate decision-making. For example, AI can adjust control parameters in real time to maximize efficiency.
4. Digital Twins
A digital twin is a virtual replica of a physical process plant, created using real-time instrumentation data. It allows operators to simulate and optimize processes without disrupting operations.
5. Smart Sensors
Next-generation sensors with built-in diagnostics and self-calibration reduce maintenance costs and improve reliability. These sensors can also communicate directly with cloud platforms for advanced analytics.
The Future of Process Plant Instrumentation
As industries strive for greater efficiency, sustainability, and safety, process plant instrumentation will continue to play a pivotal role. The integration of AI, IIoT, and digital twins will enable fully autonomous plants, where systems self-optimize in real time. Additionally, advancements in sensor technology will improve accuracy and durability, while cybersecurity measures will protect connected systems from threats.
Sustainability is another key driver. Instrumentation will help industries reduce energy consumption, minimize waste, and comply with stricter environmental regulations. For example, precise control of combustion processes in power plants can significantly cut CO2 emissions.
Process plant instrumentation is the backbone of modern industrial operations, enabling precise control, enhanced safety, and optimized performance. From sensors and transmitters to controllers and actuators, each component plays a vital role in ensuring processes run smoothly. As technology advances, instrumentation will continue to evolve, driving industries toward greater efficiency, sustainability, and innovation.
Whether you’re an engineer, plant operator, or simply curious about industrial automation, understanding process plant instrumentation opens a window into the fascinating interplay of technology and industry. It’s a field where precision meets purpose, and where the smallest measurement can make the biggest difference.
